Brief Introduction
EE Fabric is composed by polyester yarns both in warp and weft direction. It takes place of EP fabric more and more by its lower cost and better performance nowadays.
Introducing our Optimized EE Fabric. It is designed for multi-ply (5 plies and more) conveyor belt and can avoid ridge and cocklings efficiently on the non-work cover of belt when it is bent on pulley,conveyors and rollers.
 |  |

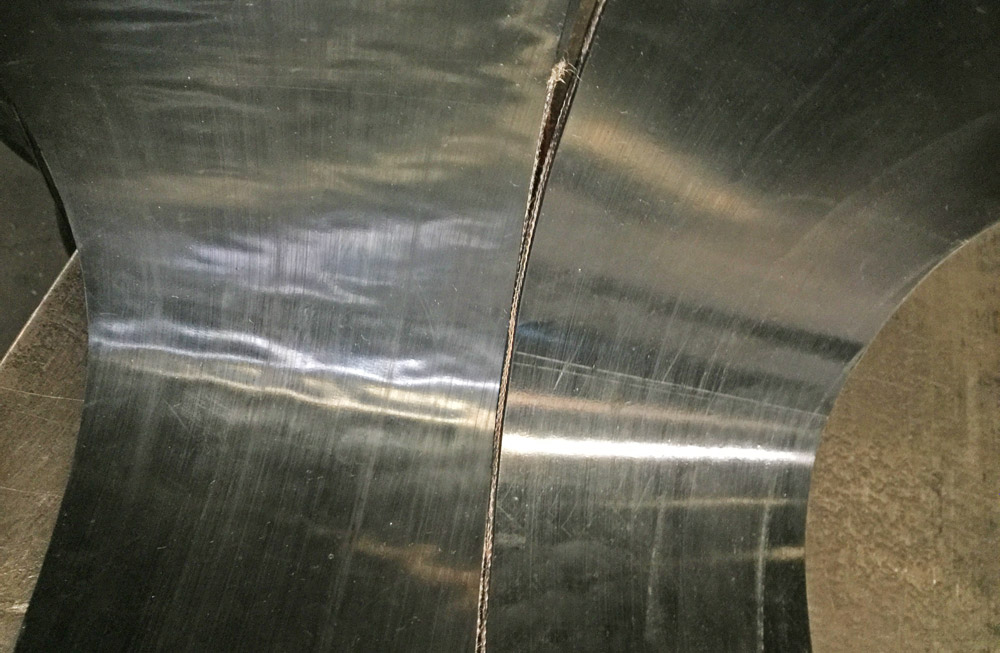

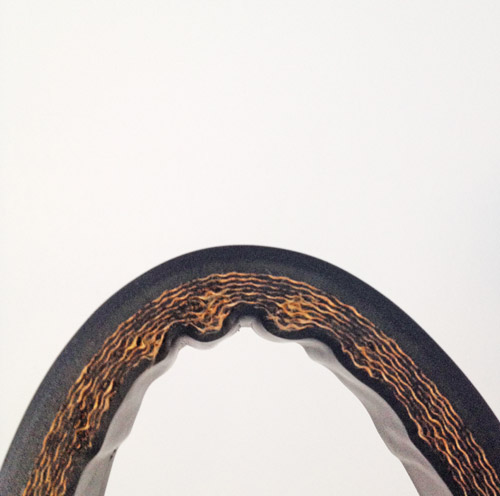

| (Traditional EP&EE Fabric) | (Optimized EE Fabric) |
 | |
Highlights
Avoid creases, cocklings, wrinkles on non-work cover of belt. Reducing abrasion between belt and rollers.
Lower heat shrinkage and better heat resistance
Good impact resistance
Optimized flexibility in belting
Specification | EE80 | EE100 | EE125 | EE150 | EE160 | |||||
|---|---|---|---|---|---|---|---|---|---|---|
Warp | Weft | Warp | Weft | Warp | Weft | Warp | Weft | Warp | Weft | |
Breaking Strength (N/mm) | ≥105 | ≥45 | ≥125 | ≥50 | ≥160 | ≥65 | ≥180 | ≥70 | ≥200 | ≥70 |
10% Load Elongation (%) | ≤2.0 | / | ≤2.0 | / | ≤2.0 | / | ≤2.0 | / | ≤2.0 | / |
Breaking Elongation (%) | ≥18 | ≤30 | ≥18 | ≤30 | ≥18 | ≤30 | ≥18 | ≤30 | ≥18 | ≤30 |
Heat Shrinkage (%) | ≤1.5 | ≤0.5 | ≤1.5 | ≤0.5 | ≤1.5 | ≤0.5 | ≤1.5 | ≤0.5 | ≤1.5 | ≤0.5 |
Adhesion (N/mm) | ≥7.8 | ≥7.8 | ≥7.8 | ≥7.8 | ≥7.8 | |||||
Unit Weight (g/m2) | 300±15 | 350±15 | 450±20 | 490±20 | 515±20 | |||||
Thickness (mm) | 0.45±0.05 | 0.50±0.05 | 0.62±0.05 | 0.70±0.05 | 0.72±0.05 | |||||
Crimp in warp (%) | ≥2.5 | ≥5.0 | ≥5.0 | ≥5.0 | ≥5.0 | |||||
Width (mm) | 600-1600 | 600-1600 | 600-1600 | 600-1600 | 600-1600 | |||||
Specification | EE200 | EE250 | EE300 | EE350 | EE400 | |||||
|---|---|---|---|---|---|---|---|---|---|---|
Warp | Weft | Warp | Weft | Warp | Weft | Warp | Weft | Warp | Weft | |
Breaking Strength (N/mm) | ≥230 | ≥75 | ≥285 | ≥80 | ≥335 | ≥90 | ≥385 | ≥90 | ≥445 | ≥90 |
10% Load Elongation (%) | ≤2.0 | / | ≤2.0 | / | ≤2.0 | / | ≤2.0 | / | ≤2.0 | / |
Breaking Elongation (%) | ≥18 | ≤30 | ≥18 | ≤30 | ≥18 | ≤30 | ≥18 | ≤30 | ≥18 | ≤30 |
Heat Shrinkage (%) | ≤1.5 | ≤0.5 | ≤1.5 | ≤0.5 | ≤1.5 | ≤0.5 | ≤1.5 | ≤0.5 | ≤1.5 | ≤0.5 |
Adhesion (N/mm) | ≥7.8 | ≥7.8 | ≥7.8 | ≥7.8 | ≥7.8 | |||||
Unit Weight (g/m2) | 605±20 | 790±30 | 860±30 | 1010±35 | 1200±40 | |||||
Thickness (mm) | 0.80±0.05 | 1.07±0.10 | 1.20±0.10 | 1.50±0.10 | 1.60±0.10 | |||||
Crimp in warp (%) | ≥5.0 | ≥5.0 | ≥5.0 | ≥5.0 | ≥5.0 | |||||
Width (mm) | 600-1600 | 600-1600 | 600-1600 | 600-1600 | 600-1600 | |||||
